TITANIC, the largest liner in the world is completed...
At 882 feet 9 inches long and 92 feet 6 inches wide, she had the same dimensions as her older sister. Her hull was built with 2 thousand 1 inch thick steel plates, held together with over 3 million rivets. Her displacement weight is 52,310 tons, even more than Olympic at 52,067 tons, making Titanic larger.
|Titanic's Central Anchor|
29 boilers will produce enough steam to power her 3 story tall reciprocating engines and single turbine, generating up to 46 thousand horsepower. The reciprocating engines turned the outer wing propellers both at 23ft in diameter, and the single turbine turned the center propeller which was 16ft in diameter. Titanic and Olympic were called triple screw steamers because of the three propellers.

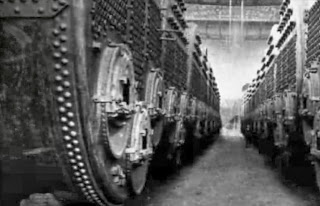

|Boilers waiting to be installed on Olympic and Titanic.|
|Titanic's Engines waiting to be installed.|
|Titanic's Central Turbine Rotor at Harland and Wolff.|

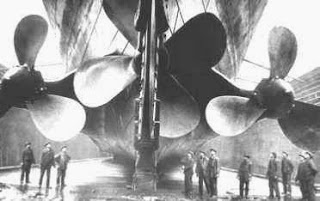

|Olympic's Triple Screws. Almost identical to Titanic.|
